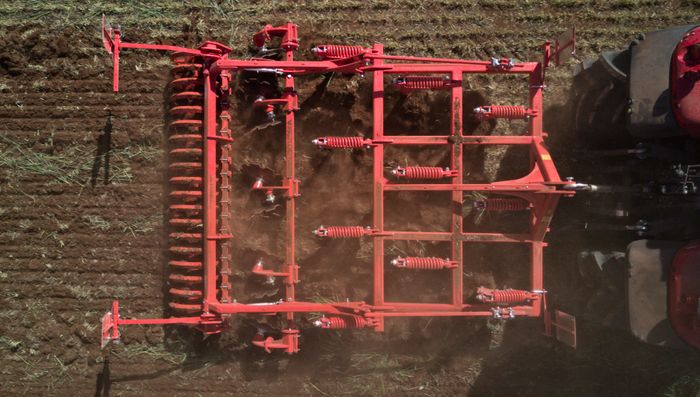

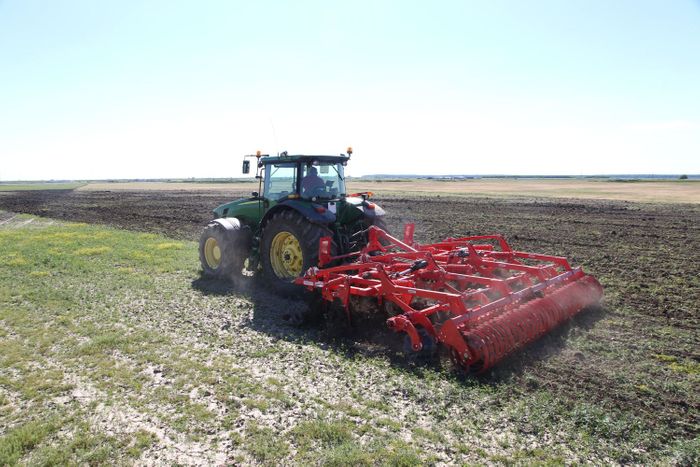

TERREMOTO 3

MASCHIO GASPARDO UK LTD Stand: 1126, DEMO8, DD05

Reduced number of field passes and consumption, the use of working organs that increase working speed and high hourly yields are just some of the advantages of TERREMOTO 3, the versatile and robust stubble cultivator. Thanks to the mixing between crop residue and soil, this equipment improves the stable organic matter content. Seedbed preparation can be carried out in a single pass, reducing space requirements to the benefit of stability during work and transport.

TERREMOTO 3 is available in two different frame configurations: fixed from 3 to 4 meters or foldable from 4 to 5 meters with a transport width of 3 meters. In both cases, the tines are arranged in 3 rows to ensure the same depth along the entire working face. The tines house the 90-mm steel tips that have the function of penetrating the soil to a depth of 25 cm, while the 310-mm side blasters allow uniform tillage along the entire working front. The deflector characterized by its special curved profile ensures excellent mixing between soil and crop residue.

The tines feature as standard the shear bolt safety system that also performs the dual function of adjusting the inclination of the anchor itself thereby varying the aggressiveness of the work.

The NON STOP safety system with a double spring autoreset system that intervenes when the load on the toe over 450 kg is available as an option.  The rear section consists of the leveler bar-rear roller assembly. The leveling bar consists of a row of 520 mm capped discs arranged staggered and mounted on silent blocks with the following functions: leveling the soil, burying the residue and closing any furrows. The rear roller, on the other hand, has the function of equalizing the soil and especially adjusting the working depth. Adjustment is of the mechanical type by means of shims, while the leveling bar (integral to the rear roller) can be adjusted in height by means of mechanical jacks. To meet the different needs of farmers depending on the type of crop residue and soil, different rear rollers are available: 560 mm diameter U-profile roller, 600 mm diameter ring roller, 450 and 550 mm cage, and 600 mm diameter ring packer
